*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112539 |
| Make: | Acra |
| Model: | 2V |
| Condition: | Used – Good |
| Features: |
|---|
| Machine base, knee and table are cast iron construction |
| Slideways are hardened and precision ground |
| Milling head can be tilted 90 degrees either right or left side |
| X, Y, Z axis are dovetail way |
| X, Y, Z axis are transmitted by precision feed lead screw with double nut |
| Capacity: |
|---|
| Maximum Table Longitudinal Travel (X-Axis): 35.5″ |
| Maximum Table Cross Travel (Y-Axis): 12.5″ |
| Maximum Knee Travel (Z-Axis): 16″ |
| Maximum Overarm Travel: 16.25″ |
| Maximum Spindle Travel: 5″ |
| Drilling Capacities: (Cast Iron) 0.75″ | (Steel) 0.62″ |
| Face Milling: 3” |
| End Milling: 0.75″ |

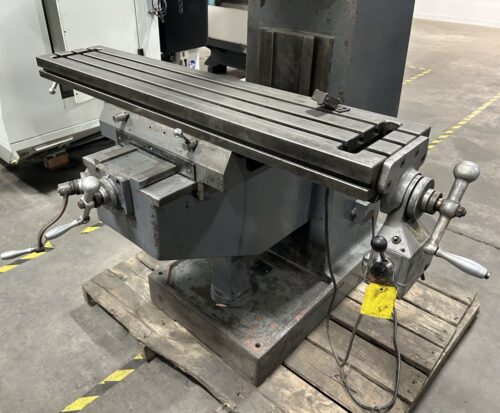

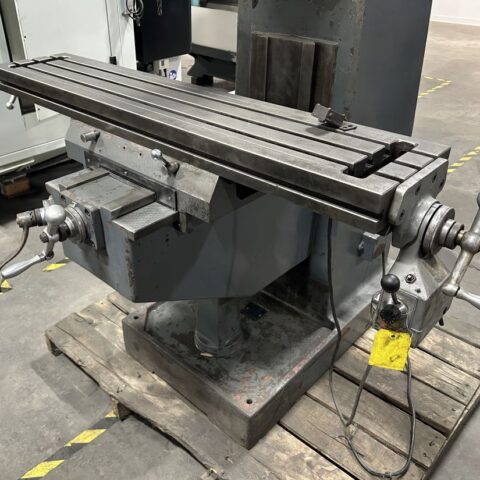

| Table: |
|---|
| Working Surface: 9″ x 49″ |
| T-Slot Number, Size: 3, 5/8″ |
| Maximum Weight of Workpiece: 550 Lbs. |

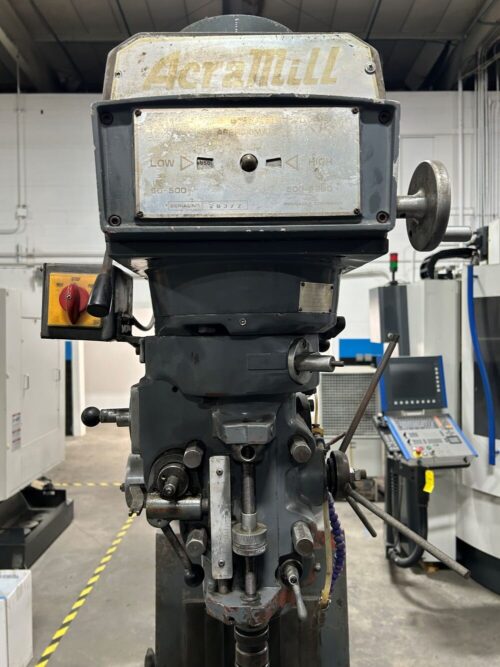

| Spindle: |
|---|
| Number of Speeds: Variable |

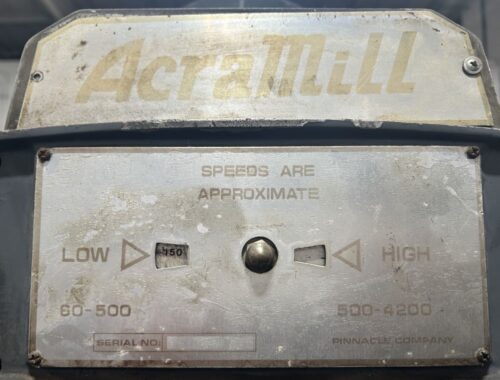

| Range of Spindle Speeds : Low: 60 – 500 High: 500 – 4,200 RPM |
| Spindle Taper: R8 |
| Diameter of Quill: 3-3/8″ |
| Collet Capacity: 1/8″ ~ 5/8″ |
| Spindle Feeds: .0015/.0003/.0006 inch/rev. |
| Spindle Travel: 5” |
| Spindle to Table: 2-3/4” ~ 17-1/2” |
| Spindle to Column: 5” ~ 17-3/8” |
| Horsepower: 2 HP |
| General: |
|---|
| Overall Machine Dimensions (WxDxH): 66″ x 63″ x 86″ |
| Electrical: 220/440V, 3 phase, 60 Hz |
| Net Weight (approx.): 2300 lbs |
