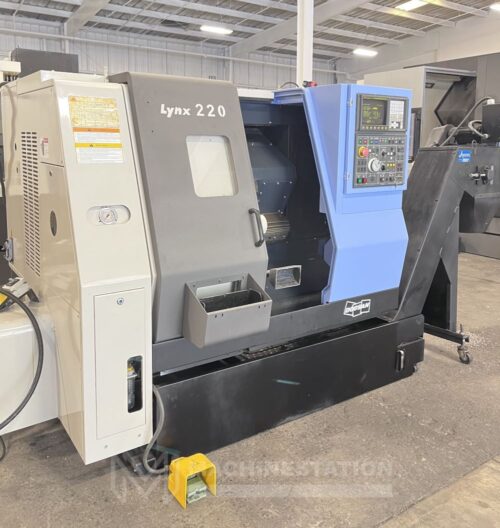

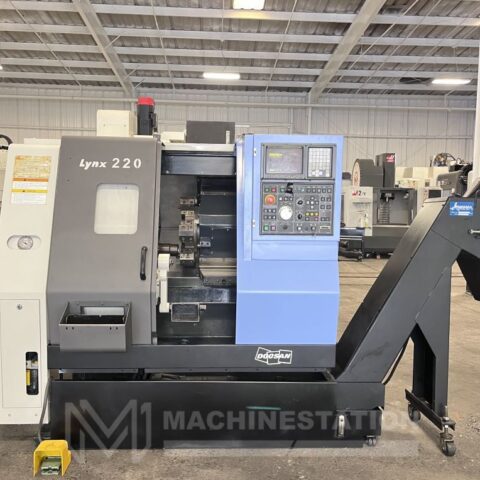

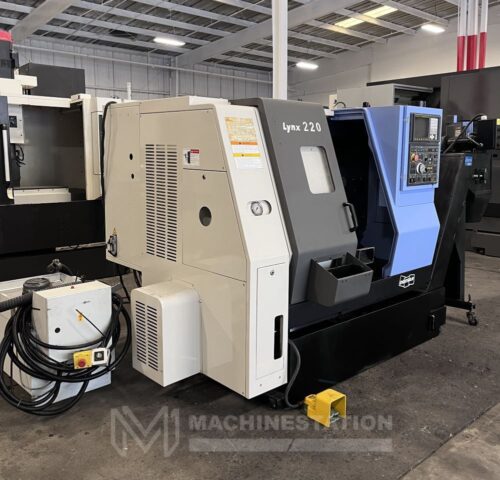

Doosan Lynx 220A CNC Turning Center $ 10,000.00
1 in stock
Location:
Lake Elsinore, CA
SKU:
112605
Make/Model:
Doosan Lynx 220A
Year:
2006
Cutting Time:
24,632 Hours
Video:
On Request
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Make:
Doosan
Model:
Lynx 220A
Year:
2006
Condition:
Used – Good
Equipped With:

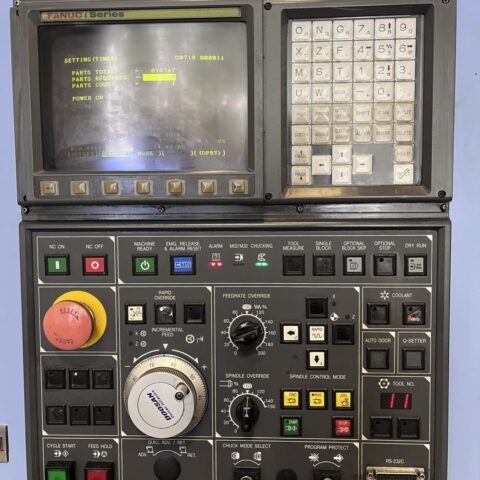

Fanuc i series CNC Control

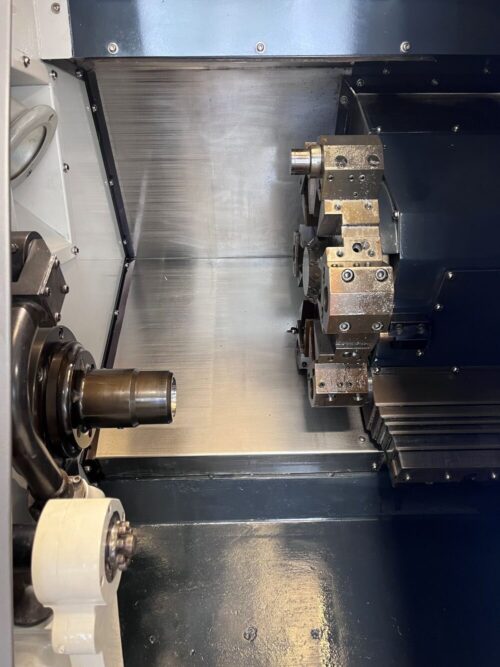

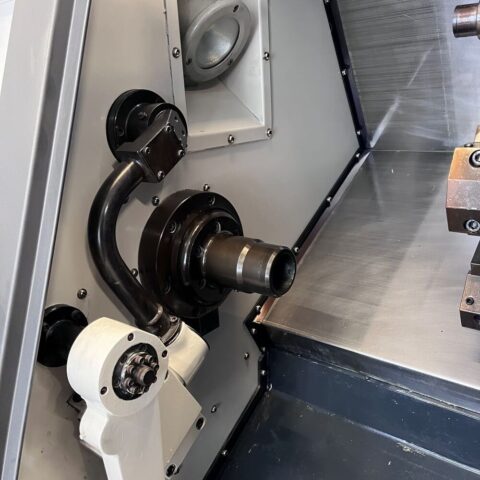

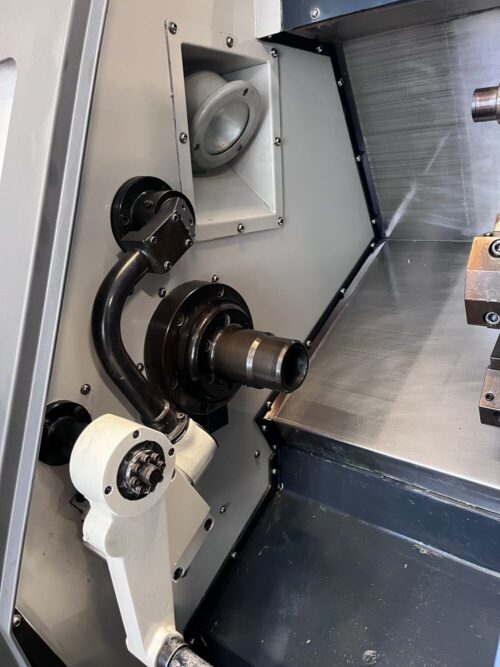

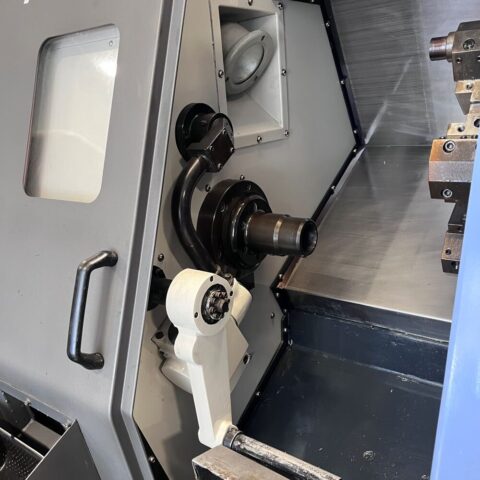

Collet Nose (Capable 6″ Chuck)

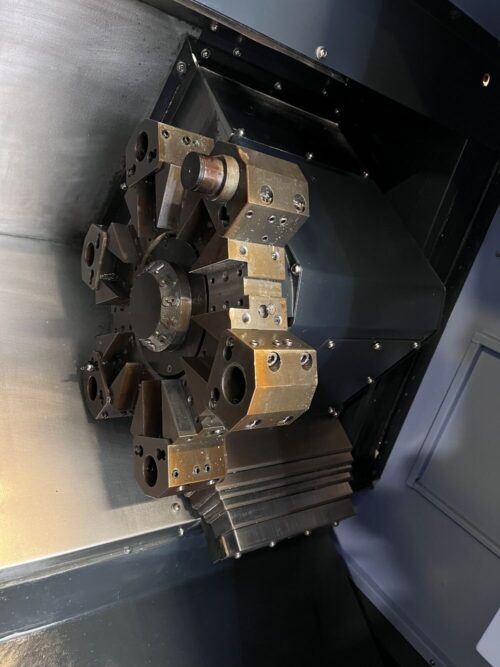

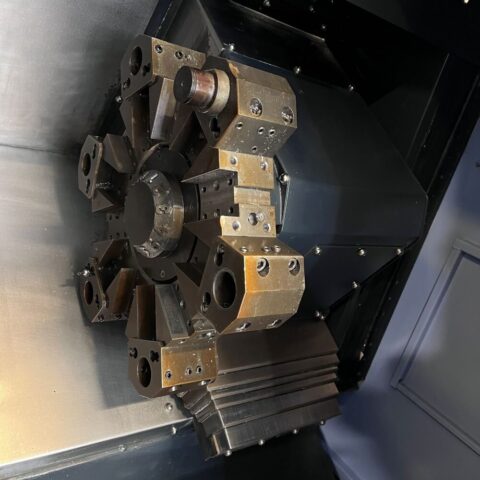

12 Station Automatic Turret

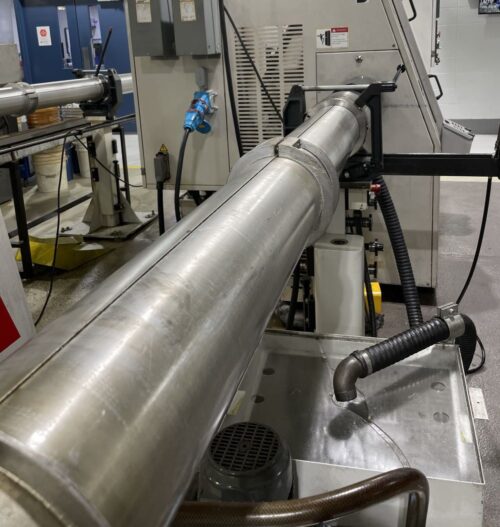

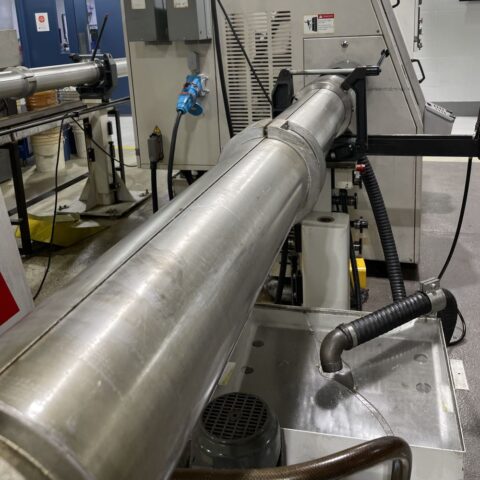

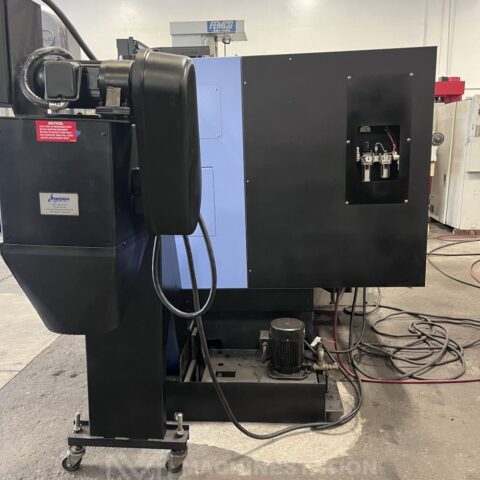

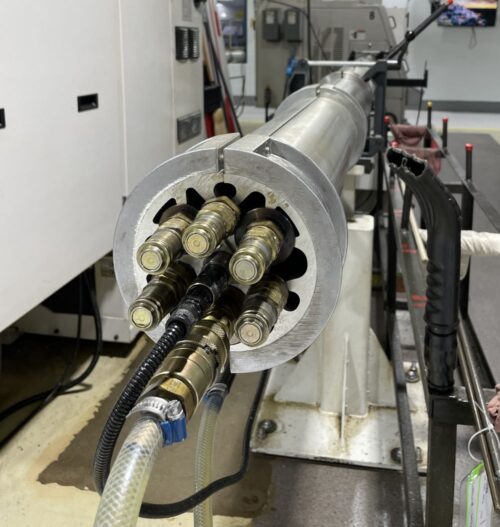

LNS Super Hydrobar Feeder
Tool Presetter
Part Catcher
RS-232 Port
Foot Switch

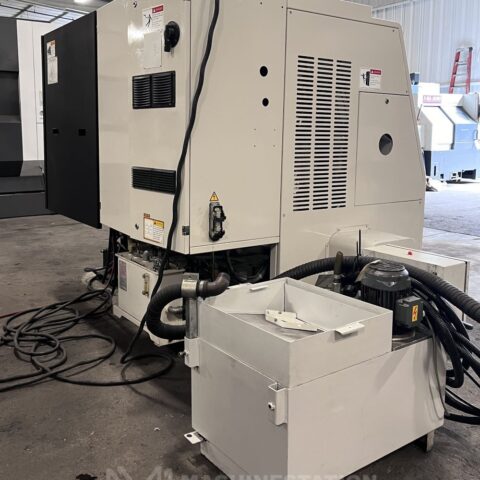

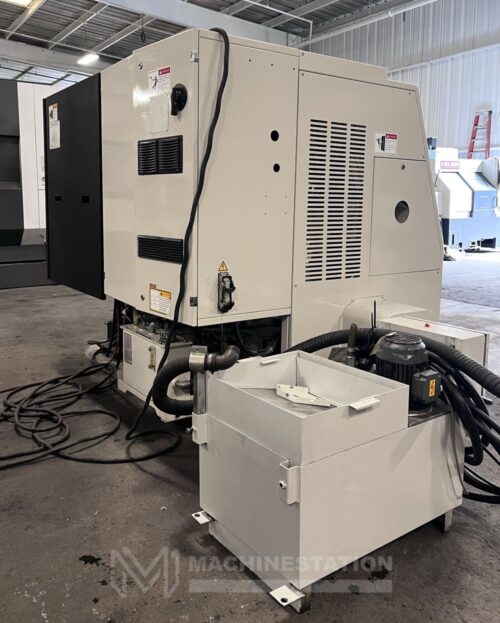

Coolant System

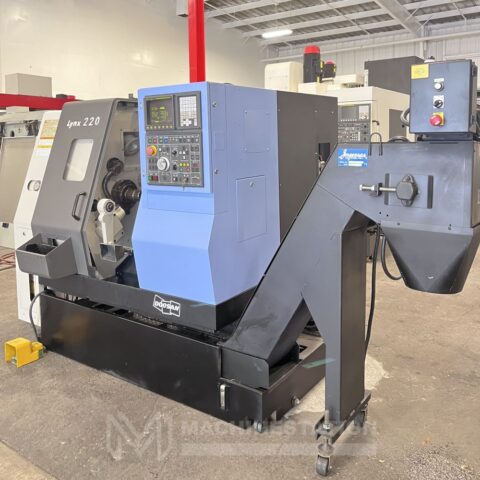

Chip conveyor
(6) Boring Tool Holders
Capacity:
Max Turning Diameter: 12.6″
Max Turning Length: 12.7″
Max Bar Capacity: 1.8″
Swing Over Bed: 20.1″
Swing Over saddle: 11.4″
Travels:
X Axis Travel: 6.9″
Z Axis Travel: 13.5″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.1″
Spindle Speed: 6000 RPM
Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.15 Second
Tool Size: 1″
General:

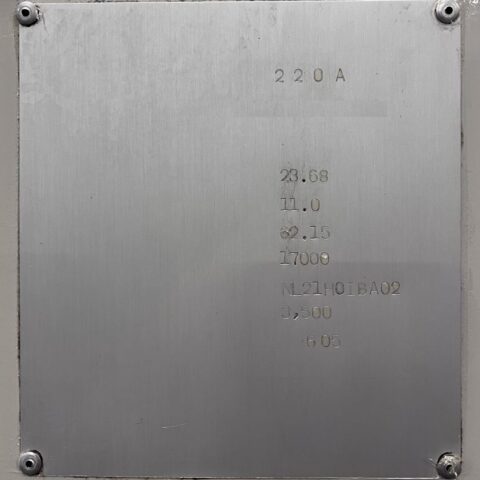

Power: 23.68 kva, 220v / 3-Phase
Overall Dimensions: 90″ x 63″ x 65″ High
Weight: 7716 lbs
