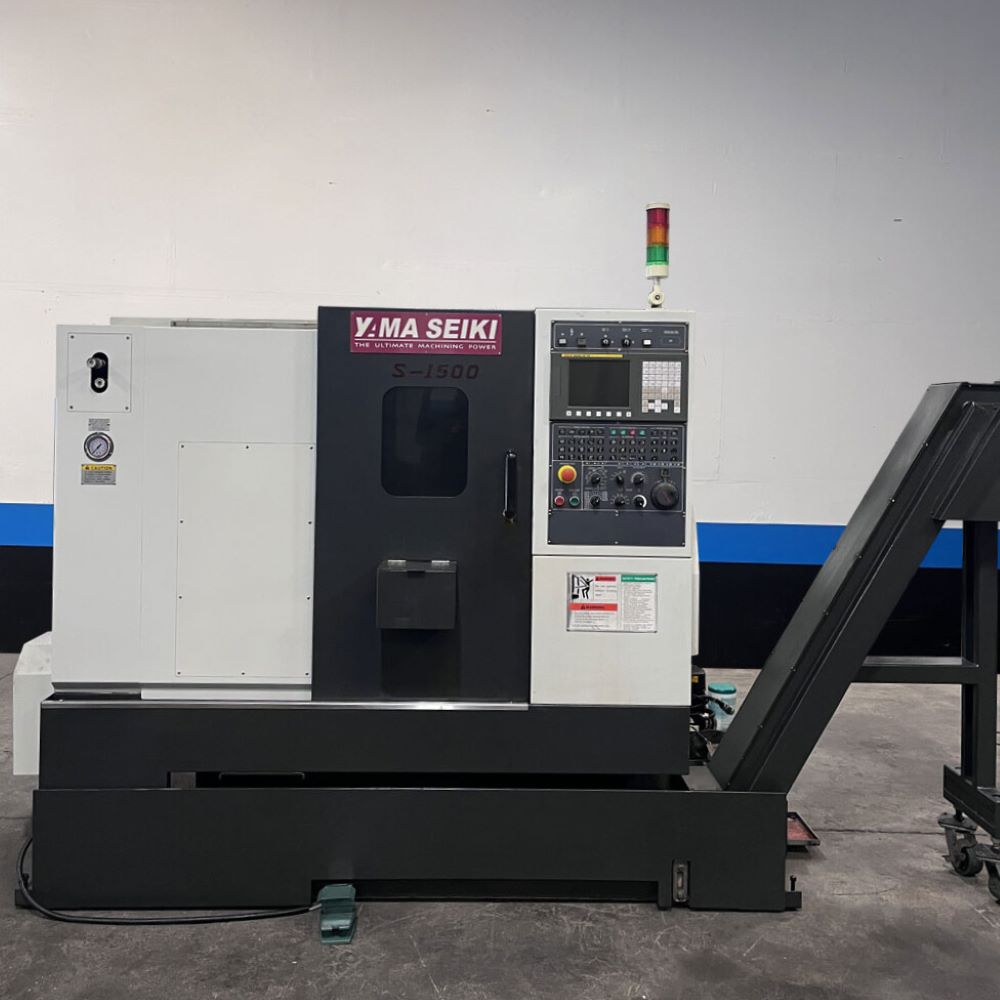

Yama Seiki GLS-1500 CNC Turning Center
1 in stock
Used Yama Seiki GLS-1500 CNC Turning Center For Sale
Location:
Lake Elsinore, CA
SKU:
105562
Make/Model:
Yama Seiki GLS-1500
Year:
2012
Cutting Time:
7332 Hours
Condition:
MLS
Video:
No Video
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
Make:
Yama Seiki
Model:
GLS-1500
Year:
2012
Condition:
MLS
Equipped With:
Fanuc 0i-TD CNC Control
Collet Chuck
6″ 3-Jaw Chuck
A2-5, 6000 RPM Spindle
12 Station Automatic Turret
Parts Catcher
Tool Presetter
Rigid Tapping
Spindle Orientation
Hydraulic Programmable Tailstock
PCMCIA Card Interface
USB Port
Foot Switch
Chip conveyor
Capacity:
Max Turning Diameter: 15.35″
Max Turning Length: 12.99″
Max Bar Capacity: 2.0″
Swing Over Bed: 22.05″
Max Swing Over Saddle: 9.06″
Travels:
X Axis Travel: 9.1″
Z Axis Travel: 12.99″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1181 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.4″
Spindle Speed: 6000 RPM
Spindle Motor: 20 hp
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tool Size: 1″
Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 11.81″
Tailstock Quill Dia.: 2.75″
Tailstock Quill Travel: 3.15″
General:
Power: 25 kva, 220v / 3-Phase
Overall Dimensions: 128″ x 71″ x 69″ High
Weight: 7,055 lbs
